流数据是将数据发送到 Web 浏览器的一种全新的方法,因为它提供了大大加快页面加载时间。很多时候,我们需要允许用户在 Web 应用程序中下载文件。当数据太大时,为用户提供良好的体验就变得相当困难。

Spring 支持通过流响应Body进行异步请求处理。在此方法中,应用程序将数据直接写入响应 OutputStream,而不保留 Servlet 容器线程。Spring 中还有其他一些处理异步请求处理的方法。

在本文中,我们将介绍如何使用流式响应Body下载文件的示例。在此方法中,数据被处理,并以块方式写入 OutputStream。

设置弹簧启动项目

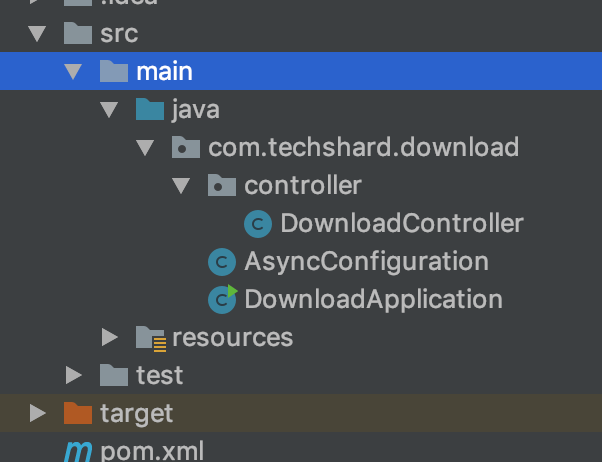

创建示例弹簧启动应用程序。下面是我的项目结构示例。我已经手动创建了项目,但您也可以使用弹簧仪创建。

设置弹簧启动项目

让我们向 Maven POM 添加一些基本依赖项。

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>com.techshard.streamingresponse</groupId>
    <artifactId>springboot-download</artifactId>
    <version>1.0-SNAPSHOT</version>

    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.1.4.RELEASE</version>
        <relativePath />
    </parent>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-actuator</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-security</artifactId>
        </dependency>
        <dependency>
            <groupId>org

apache.commons_lt;/组Id>
<工件Id>公文-io</工件Id>
<版本>1.3.2</版本>
</依赖项>
</依赖项>
</项目>

现在,我们将创建一个控制器并添加一个 API 终结点进行下载。这是我的完整控制器。

package com.techshard.download.controller;

import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.http.HttpStatus;
import org.springframework.http.MediaType;
import org.springframework.http.ResponseEntity;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;
import org.springframework.web.servlet.mvc.method.annotation.StreamingResponseBody;

import javax.servlet.http.HttpServletResponse;
import java.io.*;
import java.util.zip.ZipEntry;
import java.util.zip.ZipOutputStream;

@RestController
@RequestMapping ("/api")
public class DownloadController {

    private final Logger logger = LoggerFactory.getLogger(DownloadController.class);

    @GetMapping (value = "/download", produces = MediaType.APPLICATION_JSON_VALUE)
    public ResponseEntity<StreamingResponseBody> download(final HttpServletResponse response) {

        response.setContentType("application/zip");
        response.setHeader(
                "Content-Disposition",
                "attachment;filename=sample.zip");

        StreamingResponseBody stream = out -> {

            final String home = System.getProperty("user.home");
            final File directory = new File(home + File.separator + "Documents" + File.separator + "sample");
            final ZipOutputStream zipOut = new ZipOutputStream(response.getOutputStream());

            if(directory.exists() && directory.isDirectory()) {
                try {
                    for (final File file : directory.listFiles()) {
                        final InputStream inputStream=new FileInputStream(file);
                        final ZipEntry zipEntry=new ZipEntry(file.getName());
                        zipOut.putNextEntry(zipEntry);
                        byte[] bytes=new byte[1024];
                        int length;
                        while ((length=inputStream.read(bytes)) >= 0) {
                            zipOut.write(bytes, 0, length);
                        }
                        inputStream.close();
                    }
                    zipOut.close();
                } catch (final IOException e) {
                    logger.error("Exception while reading and streaming data {} ", e);
                }
            }
        };
        logger.info("steaming response {} ", stream);
        return new ResponseEntity(stream, HttpStatus.OK);
    }
}

在此 API 终结点中,我们从目录中读取多个文件并创建 zip 文件。我们正在流响应机构中执行此过程。它将数据直接写入OutputStream,然后再使用响应实体将写入的信息传回客户端。这意味着在服务器处理和写入数据以区块形式写入数据时,下载过程将在客户端上立即开始。

启动服务器并使用http://localhost:8080/api/downloadTask执行器是一个接口,用于抽象可运行的执行。

让我们配置任务执行器。下面是 AsyncConfiguration 类,它使用 WebMvcCo 图记器配置超时,并注册一个拦截器,该拦截器在有超时时调用,以防需要一些特殊处理。

package com.techshard.download;

import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.aop.interceptor.AsyncUncaughtExceptionHandler;
import org.springframework.aop.interceptor.SimpleAsyncUncaughtExceptionHandler;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.core.task.AsyncTaskExecutor;
import org.springframework.scheduling.annotation.AsyncConfigurer;
import org.springframework.scheduling.annotation.EnableAsync;
import org.springframework.scheduling.annotation.EnableScheduling;
import org.springframework.scheduling.concurrent.ThreadPoolTaskExecutor;
import org.springframework.web.context.request.NativeWebRequest;
import org.springframework.web.context.request.async.CallableProcessingInterceptor;
import org.springframework.web.context.request.async.TimeoutCallableProcessingInterceptor;
import org.springframework.web.servlet.config.annotation.AsyncSupportConfigurer;
import org.springframework.web.servlet.config.annotation.WebMvcConfigurer;

import java.util.concurrent.Callable;

@Configuration
@EnableAsync
@EnableScheduling
public class AsyncConfiguration implements AsyncConfigurer {

    private final Logger log = LoggerFactory.getLogger(AsyncConfiguration.class);

    @Override
    @Bean (name = "taskExecutor")
    public AsyncTaskExecutor getAsyncExecutor() {
        log.debug("Creating Async Task Executor");
        ThreadPoolTaskExecutor executor = new ThreadPoolTaskExecutor();
        executor.setCorePoolSize(5);
        executor.setMaxPoolSize(10);
        executor.setQueueCapacity(25);
        return executor;
    }

    @Override
    public AsyncUncaughtExceptionHandler getAsyncUncaughtExceptionHandler() {
        return new SimpleAsyncUncaughtExceptionHandler();
    }

    /** Configure async support for Spring MVC. */
    @Bean
    public WebMvcConfigurer webMvcConfigurerConfigurer(AsyncTaskExecutor taskExecutor, CallableProcessingInterceptor callableProcessingInterceptor) {
        return new WebMvcConfigurer() {
            @Override
            public void configureAsyncSupport(AsyncSupportConfigurer configurer) {
                configurer.setDefaultTimeout(360000).setTaskExecutor(taskExecutor);
                configurer.registerCallableInterceptors(callableProcessingInterceptor);
                WebMvcConfigurer.super.configureAsyncSupport(configurer);
            }
        };
    }

    @Bean
    public CallableProcessingInterceptor callableProcessingInterceptor() {
        return new TimeoutCallableProcessingInterceptor() {
            @Override
            public <T> Object handleTimeout(NativeWebRequest request, Callable<T> task) throws Exception {
                log.error("timeout!");
                return super.handleTimeout(request, task);
            }
        };
    }
}

结论

使用流式响应Body,我们现在可以轻松地流式传输高并发应用程序的数据。我希望你喜欢这篇文章。请让我知道,如果你有任何意见或建议在下面的评论部分。

本文的示例可以在GitHub 存储库中找到。
